In recent years, the new energy vehicle industry has developed rapidly worldwide. As the core supporting facility for new energy vehicles, electric vehicle (EV) charging stations (EV charging piles), as known as Electric Vehicle Supply Equipment (EVSE) have seen explosive growth in market demand. From urban shopping malls, residential communities to highway service stations, charging stations can be seen everywhere. However, EV charging stations are mostly used outdoors, facing harsh environments such as strong sunlight, heavy rain, thunderstorms, high temperature, low temperature, and even accidental collisions and vandalism. Therefore, the selection of materials directly determines the service life, safety, and maintenance cost of charging stations.

Among all the materials for charging stations, polycarbonate (PC) sheet has gradually become the preferred material for EV charging stations due to its excellent comprehensive properties. PC sheet, also known as polycarbonate sheet, is a high-performance engineering plastic with the characteristics of ultra-high impact resistance, excellent weather resistance, flame retardancy, light weight, and good processability. It can meet the dual requirements of safety and durability of charging stations in outdoor environments.

In this article, we will comprehensively introduce the basic properties of PC sheets, core advantages in EV charging station applications, specific application scenarios, comparison with other common materials, selection guidelines, and our professional PC sheet processing and customization services. Whether you are a charging station manufacturer, a project investor, or a buyer looking for high-quality materials, this article will provide you with detailed and practical references.

Polycarbonate (PC) Sheet Basic Properties

Before understanding the application of PC sheets in EV charging stations, we need to clarify the basic properties of PC sheets. Polycarbonate (PC) is a polymer compound formed by the polymerization of carbonate groups. Its molecular structure gives it a unique combination of “rigidity and flexibility”, making it stand out among engineering plastics. The following is a detailed introduction to its core properties:

1.1 Ultra-High Impact Resistance (Key Advantage)

PC sheet is known as “unbreakable glass” because of its super impact resistance. Its impact strength is 200 times that of glass, 30 times that of acrylic (PMMA), and 5 times that of PVC sheet. Even if it is hit by a heavy object, hail, or accidentally collided, it will not break into sharp fragments, which can effectively avoid safety hazards such as scratching people. In low-temperature environments (down to -40°C), PC sheets can still maintain good toughness without brittleness, which is incomparable to many plastic materials.

1.2 Excellent Weather Resistance (Outdoor Core Property)

EV charging stations need to be used outdoors for a long time, so weather resistance is the key to measuring material quality. PC sheets are added with UV-resistant co-extrusion layer during production, which can block more than 99% of ultraviolet rays. Long-term outdoor exposure (10-15 years) will not cause yellowing, embrittlement, cracking, or performance degradation. It can adapt to extreme temperature environments of -40°C to 120°C, and will not deform or soften in high temperature (summer direct sunlight, surface temperature up to 80°C), nor will it crack in low temperature (winter minus 30°C).

1.3 Good Flame Retardancy (Safety Core)

Safety is the top priority of EV charging stations, especially fire safety. PC sheet itself has inherent flame retardancy, and conventional PC sheets can reach UL94-V2 grade; after flame retardant modification, it can reach UL94-V0 grade (the highest flame retardant grade). It has the characteristics of self-extinguishing when leaving fire, no flame spread, no toxic gas release. When a short circuit or high temperature occurs inside the charging station, the PC sheet can effectively block the spread of fire and reduce the risk of fire accidents. In addition, it can pass the 850°C glow wire test, which meets the strict fire protection standards of the new energy industry.

1.4 Light Weight & High Strength (Cost-Effective Property)

The density of PC sheet is only 1.2g/cm³, which is 1/7 of steel, 1/2 of aluminum alloy, and 2/3 of glass. Under the same strength, the weight of PC sheet is much lighter than metal and glass. This feature brings two major benefits: first, it is convenient for transportation, handling, and installation, reducing labor and logistics costs; second, it reduces the structural load of the charging station, no need for complex support structures, saving engineering costs. At the same time, PC sheet has high tensile strength and bending strength, and can maintain stable size under long-term load, without deformation or warping.

1.5 Excellent Electrical Insulation (Safety Guarantee)

EV charging stations are high-power electrical equipment, and electrical insulation performance is directly related to user safety. PC sheet has excellent electrical insulation properties, with a volume resistivity of 10^16 Ω·cm, which can effectively block current leakage and avoid electric shock accidents. It can maintain stable insulation performance in humid and high-temperature environments, which is very suitable for manufacturing internal insulation parts and external protective shells of charging stations, ensuring the safety of users and equipment.

1.6 Good Processability & Design Flexibility

PC sheet has good thermoplasticity and can be processed into various shapes through cutting, bending, punching, drilling, thermoforming, bonding, and printing. It can be made into thin-walled shells, curved surfaces, special-shaped parts, etc., meeting the diverse design needs of charging stations (such as streamlined appearance, personalized LOGO printing, etc.). In addition, PC sheets have high light transmittance (80%-90%, close to glass), and can be made into transparent or translucent parts (such as display panels, observation windows), which is convenient for users to view charging data.

1.7 Environmental Protection & Recyclability (Sustainable Property)

With the global emphasis on environmental protection, the sustainability of materials has become an important consideration for enterprises. PC sheet is a non-toxic, odorless, environmentally friendly engineering plastic, which meets ROHS and REACH standards, and will not release harmful substances during use. In addition, PC sheet is recyclable, and waste PC sheet can be reprocessed into new products after crushing and melting, which reduces environmental pollution and conforms to the circular economy concept of the new energy industry.

Core Benefits of PC Sheet for EV Charging Stations

Combined with the basic properties of PC sheets and the actual use scenarios of EV charging stations, we can summarize the six core advantages of PC sheets in EV charging station applications. These advantages perfectly solve the pain points of traditional materials (such as easy aging, poor safety, heavy weight, high cost) and become the key to the popularity of PC sheets in the charging station industry.

2.1 All-Weather Durability, Long Service Life

EV charging stations are exposed to the outdoors all year round, facing the test of wind, rain, sun, and frost. Traditional materials such as ordinary plastic, wood, and even some low-quality metals are prone to aging, rust, cracking, and fading after 2-3 years of use, requiring frequent maintenance and replacement, which increases the cost.

PC sheets have excellent weather resistance and anti-aging properties. With the UV-resistant layer, they can resist the erosion of ultraviolet rays, rain, and acid rain for a long time. Even after 10-15 years of outdoor use, they can still maintain the original performance and appearance, with almost no aging or damage. This long service life greatly reduces the frequency of maintenance and replacement of charging stations, saves a lot of maintenance costs for users, and improves the overall economy of charging station operation.

2.2 High Safety, Guard Against Multiple Risks

Safety is the top priority of EV charging stations, and PC sheets provide multiple safety protections for charging stations, which is incomparable to many traditional materials.

First, flame retardant safety: As mentioned earlier, flame retardant PC sheets reach UL94-V0 grade, which can self-extinguish in case of fire, effectively preventing the spread of fire caused by short circuits or high temperature inside the charging station, and avoiding major fire accidents.

Second, impact & anti-vandalism safety: The ultra-high impact resistance of PC sheets can resist accidental collisions (such as vehicle scratches, pedestrian bumps) and vandalism (such as stone throwing, stick beating). It will not break into sharp fragments, avoiding secondary injury to users.

Third, electrical insulation safety: Excellent electrical insulation performance can effectively prevent current leakage and electric shock accidents, ensuring the safety of users during charging.

Fourth, high & low temperature safety: It can maintain stable performance in the temperature range of -40°C to 120°C, without softening and deformation in high temperature, and without cracking in low temperature, avoiding safety hazards caused by material performance degradation under extreme temperatures.

2.3 Lightweight & Easy Installation, Reduce Comprehensive Cost

Compared with metal (steel, aluminum alloy) and glass, PC sheets are much lighter, which brings great convenience to the production, transportation, and installation of charging stations.

In the production link: PC sheets are easy to process, and can be formed in one time through thermoforming or injection molding, reducing the number of parts and assembly processes, improving production efficiency, and reducing production costs.

In the transportation link: The light weight of PC sheets reduces the weight of charging station components, reduces transportation volume and logistics costs, and is more convenient for long-distance transportation.

In the installation link: Workers can easily carry and install PC sheet components without the need for large-scale hoisting equipment, which reduces labor costs and installation time. For some scattered charging station projects (such as residential communities, small shopping malls), the lightweight advantage of PC sheets is more obvious, which can greatly shorten the project cycle.

In addition, the long service life of PC sheets reduces the cost of later maintenance and replacement, and the comprehensive cost is much lower than that of metal and glass materials with the same performance.

2.4 Strong Design Flexibility, Meet Personalized Needs

With the development of the new energy vehicle industry, the market has increasingly higher requirements for the appearance and personalized design of charging stations. Charging stations are no longer just simple charging equipment, but also part of urban infrastructure and brand image display.

PC sheets have strong design flexibility, which can meet the diverse design needs of charging station manufacturers. First, shape flexibility: PC sheets can be processed into various shapes such as flat plates, curved surfaces, arcs, and special-shaped parts, realizing streamlined, minimalist, or personalized appearance designs, making charging stations more beautiful and in line with urban aesthetics.

Second, color & printing flexibility: PC sheets can be made into various colors (transparent, black, white, gray, and other customized colors) by adding color masterbatches. At the same time, the surface can be printed with LOGO, patterns, operation instructions, and warning signs through silk printing, digital printing, etc., which is convenient for brand promotion and user operation.

Third, transparency flexibility: The light transmittance of PC sheets can be adjusted according to needs (transparent, translucent, frosted), which can be used to make display panels, observation windows, and light-transmitting shells, improving the user experience and the technological sense of charging stations.

2.5 Excellent Corrosion Resistance, Adapt to Harsh Environments

In addition to high temperature, low temperature, and strong sunlight, EV charging stations may also face humid environments (such as coastal areas, rainy cities), salt spray corrosion (coastal areas), and chemical corrosion (industrial areas). Traditional metal materials are prone to rust and corrosion in these environments, which affects the structural stability and safety of charging stations; ordinary plastic materials are prone to chemical reaction and performance degradation when encountering corrosive substances.

PC sheets have excellent corrosion resistance, and will not react with water, acid, alkali, salt, and most chemical substances. In coastal areas, it can resist salt spray corrosion without rusting; in humid and rainy areas, it can resist moisture erosion without mildew or deformation; in industrial areas, it can resist the corrosion of chemical gases without performance degradation. This feature makes PC sheets suitable for charging station projects in various harsh environments, expanding the application scope of charging stations.

2.6 Eco-Friendly & Recyclable, Comply with Industry Trends

The new energy vehicle industry is a typical green and low-carbon industry, and the supporting facilities (charging stations) also need to conform to the environmental protection and sustainable development trends. PC sheets are non-toxic, odorless, and environmentally friendly, and do not release harmful substances during production and use, which will not cause pollution to the environment.

In addition, PC sheets are 100% recyclable. Waste PC sheet components can be recycled, crushed, melted, and reprocessed into new PC sheet products or other plastic parts, realizing resource recycling and reducing waste discharge. This not only conforms to the national environmental protection policies and the green development concept of the new energy industry, but also helps enterprises reduce material costs and improve the sustainability of the supply chain.

Main Applications of PC Sheet in EV Charging Stations

With the above core advantages, PC sheets have been widely used in various parts of EV charging stations, covering external protective parts, display & operation parts, internal insulation & structural parts, and supporting facilities. The following is a detailed introduction to the specific application scenarios and value of PC sheets in each part.

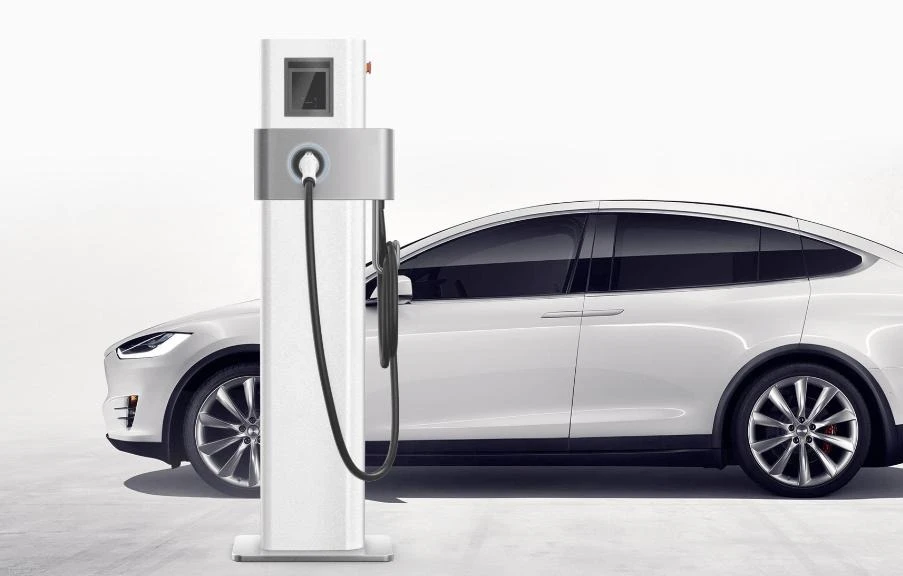

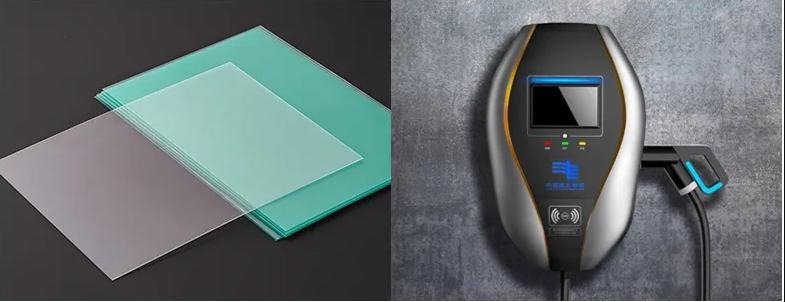

3.1 Charging Station Outer Shell (Core Application)

The outer shell is the outermost protective layer of the charging station, which bears the functions of protecting internal components, waterproofing, dustproofing, anti-collision, and anti-aging. It is also the key part directly exposed to the external environment, so the material requirements are the highest.

PC sheet (especially flame retardant PC sheet) is the preferred material for charging station outer shells at present. It can be made into the main shell of AC charging stations (7kW-22kW) and DC charging stations (30kW-120kW) through injection molding or thermoforming. The thickness of the PC sheet shell is usually 2mm-5mm, which can balance strength and weight.

The value of PC sheet shell: First, excellent protection performance, waterproof, dustproof, anti-collision, anti-aging, and effectively protect the internal circuit, control sheet, and charging module from external damage; second, flame retardant safety, prevent the spread of internal fire; third, lightweight, reduce the weight of the whole machine, convenient for installation and transportation; fourth, beautiful appearance, can be customized in color and printed with LOGO, improving brand image.

3.2 Display & Operation Panel Cover

The display & operation panel is the “interaction window” between users and charging stations, including LCD display screen, touch screen, button area, and QR code scanning area. It needs to be transparent (to display data clearly), wear-resistant (to avoid scratching during long-term use), and UV-resistant (to prevent yellowing and blurring).

PC sheet (transparent or frosted) is the ideal material for the display panel cover. The thickness is usually 1mm-3mm, with high light transmittance (85%-90%), which can clearly display charging data (voltage, current, power, charging time, etc.). After surface hardening treatment, it has excellent wear resistance, and long-term touch and friction will not leave scratches; with UV-resistant layer, it will not yellow or blur after long-term outdoor use, ensuring the clarity of the display screen.

In addition, the PC sheet operation panel can be integrated with buttons and touch functions, with good tactile feel and sensitivity, improving user operation experience.

3.3 Charging Gun Shell & Protective Parts

The charging gun is the core component connecting the charging station and the new energy vehicle, and it is also the part with the highest frequency of use. It needs to be anti-drop, anti-collision, wear-resistant, flame retardant, and electrically insulating.

Modified PC sheet (or PC/ABS alloy material) is widely used in the manufacturing of charging gun shells, gun handles, and protective sleeves. The charging gun shell made of PC sheet has high impact resistance, and will not break when dropped from a height of 1.5m; it has good wear resistance, and long-term plugging and unplugging will not cause surface wear; it has excellent flame retardancy and electrical insulation performance, ensuring the safety of plugging and unplugging and charging.

In addition, PC sheet can also be made into charging gun cable protective sleeves, which have good flexibility and wear resistance, protecting the cable from bending damage and external friction, and prolonging the service life of the charging gun.

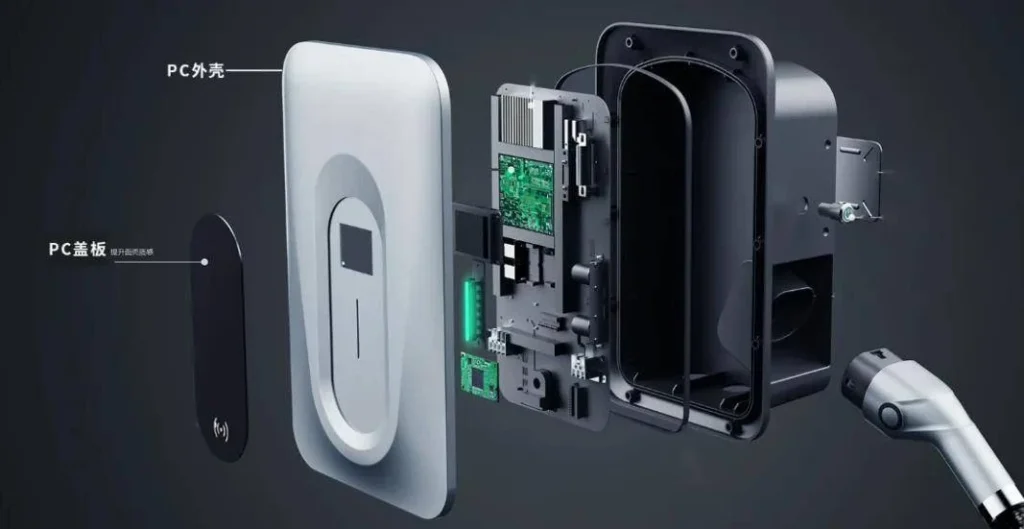

3.4 Internal Insulation & Structural Parts

The interior of the charging station contains a large number of electronic components, circuits, and power modules, which require insulation, high temperature resistance, and structural support parts to ensure the normal operation of the equipment.

PC sheet has excellent electrical insulation and high temperature resistance, and can be made into various internal insulation and structural parts, including insulation gaskets, insulation brackets, circuit sheet protective covers, module fixing plates, and wire troughs. These parts can effectively isolate the current, prevent short circuits and leakage, and support and fix the internal components to avoid loosening and vibration damage during operation.

In addition, PC sheet can maintain stable performance in the high-temperature environment inside the charging station (the temperature of the power module can reach 60°C-80°C), without deformation or aging, ensuring the long-term stable operation of the internal components.

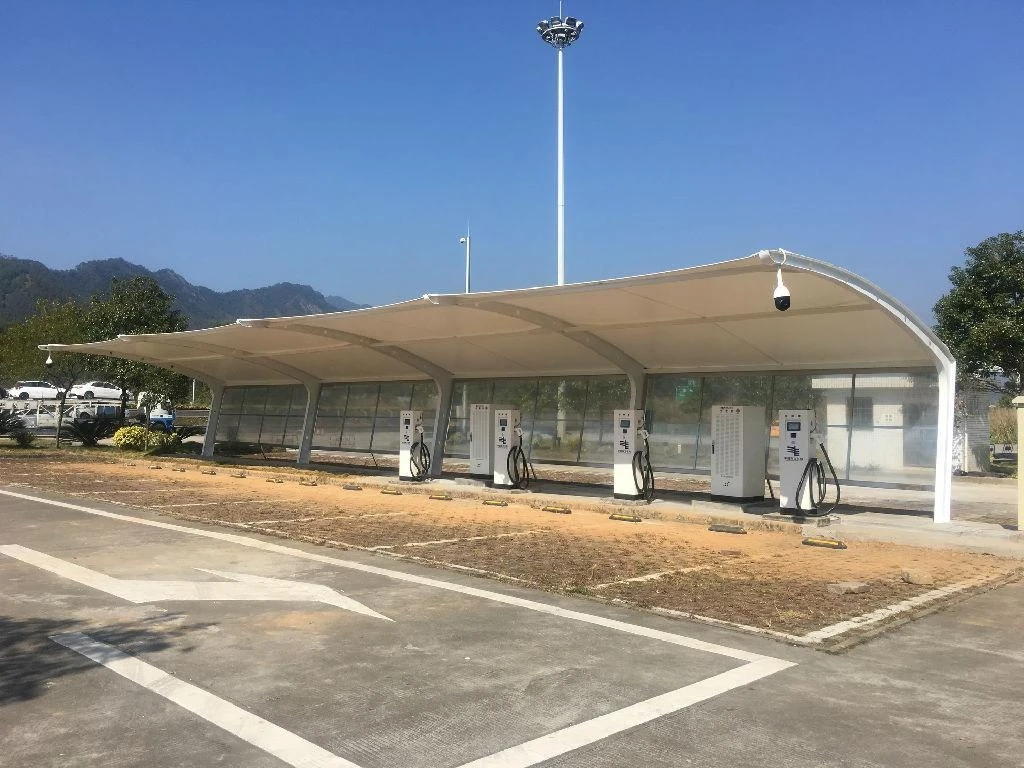

3.5 Charging Station Rain Shed & Canopy

For outdoor charging stations (especially open-air charging stations without buildings), rain sheds and canopies are essential supporting facilities, which can block sunlight, rain, snow, and hail, protect charging stations and vehicles, and provide a comfortable charging environment for users.

PC sheet (hollow PC sheet or solid PC sheet) is the mainstream material for charging station rain sheds. Hollow PC sheet has the characteristics of light weight, good light transmission, and heat insulation, with a thickness of 6mm-12mm, which is suitable for large-area rain sheds; solid PC sheet has higher strength and impact resistance, with a thickness of 4mm-8mm, which is suitable for small-area canopies or areas with high wind and hail resistance requirements.

The value of PC sheet rain shed: First, high light transmission (80%-90%), natural light can enter, no need for additional lighting during the day, saving energy; second, excellent impact resistance, can resist hail and typhoons, safe and reliable; third, good heat insulation, reduce the temperature inside the rain shed in summer, avoid the high temperature of charging stations and vehicles; fourth, lightweight, no need for complex steel structure support, saving engineering costs.

3.6 Other Auxiliary Parts

In addition to the above core parts, PC sheets can also be used in many auxiliary parts of charging stations, including:

• Warning Sign & Label Plate: PC sheet has good printability and weather resistance, and can be made into warning signs (high voltage danger, no smoking), operation instructions, and brand label plates, which are durable and clear.
• Ventilation & Heat Dissipation Cover: PC sheet has good toughness and corrosion resistance, and can be made into ventilation covers and heat dissipation windows, which can ensure the ventilation and heat dissipation of the charging station, and prevent dust and rain from entering.
• Base & Bracket Protective Cover: The base and bracket of the charging station are in contact with the ground for a long time, and are prone to moisture and corrosion. PC sheet protective covers can play a role in waterproofing and corrosion protection, prolonging the service life of the base and bracket.
• Wire & Cable Management Parts: PC sheet can be made into wire troughs, cable ties, and fixing brackets, which are convenient for organizing internal wires and cables, avoiding confusion and short circuits.

PC Sheet vs Metal / PVC / Acrylic for Charging Stations

At present, the common materials for EV charging stations on the market include metal (steel, aluminum alloy), PVC sheet, acrylic (PMMA), and PC sheet. Each material has its own advantages and disadvantages, and the following is a detailed comparison from the dimensions of impact resistance, weather resistance, flame retardancy, weight, processability, cost, and service life, so that you can clearly understand the unique advantages of PC sheets.

4.1 Impact Resistance Comparison

• PC Sheet: Ultra-high impact resistance, 200 times that of glass, 30 times that of acrylic, 5 times that of PVC. It will not break into sharp fragments when impacted, safe and reliable.
• Metal (Steel/Aluminum Alloy): High hardness and impact resistance, but heavy weight; when impacted, it will deform and dent, and cannot recover; sharp edges may be formed after deformation, which has potential safety hazards.
• PVC Sheet: Poor impact resistance, easy to break when impacted, brittle at low temperature, and the fragments are sharp, which is easy to scratch people.
• Acrylic (PMMA): Very poor impact resistance, fragile like glass, easy to break when slightly impacted, and the fragments are sharp, which has great safety hazards.

Conclusion: PC sheet > Metal > PVC > Acrylic (PC sheet has the best impact resistance and safety).

4.2 Weather Resistance Comparison

• PC Sheet: With UV-resistant co-extrusion layer, outdoor use for 10-15 years without yellowing, embrittlement, or performance degradation; adapt to -40°C to 120°C extreme temperature.
• Metal (Steel/Aluminum Alloy): Steel is easy to rust and corrode in humid and coastal environments; aluminum alloy has better corrosion resistance, but it will oxidize and fade after long-term outdoor use, and the surface coating will peel off.
• PVC Sheet: Poor weather resistance, outdoor use for 2-3 years will yellow, embrittle, crack, and deform; low temperature resistance is poor, easy to break in winter.
• Acrylic (PMMA): Poor UV resistance, outdoor use for 1-2 years will yellow and blur; easy to deform in high temperature (above 60°C), and brittle in low temperature.

Conclusion: PC sheet > Aluminum Alloy > Steel > PVC > Acrylic (PC sheet has the best weather resistance and long-term durability).

4.3 Flame Retardancy Comparison

• PC Sheet: Conventional grade UL94-V2, flame retardant grade UL94-V0 (highest grade), self-extinguishing when leaving fire, no flame spread, no toxic gas release.
• Metal (Steel/Aluminum Alloy): Non-combustible, but it will conduct heat and transfer flame; when the internal temperature is too high, the metal shell will become hot, which may scald users; it cannot block the spread of internal fire.
• PVC Sheet: Flame retardant (UL94-V0), but it will release a large amount of toxic and corrosive gas (hydrogen chloride) when burned, which is harmful to human health and the environment.
• Acrylic (PMMA): Flammable, no flame retardancy, easy to burn when encountering open fire, and the flame spreads rapidly, releasing toxic gas.

Conclusion: PC sheet (V0) > PVC (V0, toxic gas) > Metal (non-combustible, heat conduction) > Acrylic (flammable) (PC sheet has the best flame retardant safety and environmental protection).

4.4 Weight Comparison (Density)

• PC Sheet: 1.2g/cm³, light weight, 1/7 of steel, 1/2 of aluminum alloy, 2/3 of glass.
• Steel: 7.85g/cm³, heavy weight, high transportation and installation costs.
• Aluminum Alloy: 2.7g/cm³, lighter than steel, but heavier than PC sheet.
• PVC Sheet: 1.4g/cm³, heavier than PC sheet.
• Acrylic (PMMA): 1.18g/cm³, slightly lighter than PC sheet, but poor performance.

Conclusion: Acrylic ≈ PC sheet < PVC < Aluminum Alloy < Steel (PC sheet has the best balance of weight and performance).

4.5 Processability & Design Flexibility Comparison

• PC Sheet: Good thermoplasticity, can be cut, bent, punched, thermoformed, printed; various shapes and colors, high design flexibility.
• Metal (Steel/Aluminum Alloy): Poor processability, need for welding, stamping, spraying; single shape, difficult to make complex curved surfaces and special-shaped parts; limited color, easy to peel off.
• PVC Sheet: Poor thermoplasticity, easy to deform when heated; can be cut and bonded, but difficult to bend and thermoform; single design.
• Acrylic (PMMA): Brittle, easy to break when processed; can be cut and polished, but difficult to bend and thermoform; limited design flexibility.

Conclusion: PC sheet > PVC > Acrylic > Metal (PC sheet has the best processability and design flexibility).

4.6 Service Life & Comprehensive Cost Comparison

• PC Sheet: Service life 10-15 years, high initial material cost, but low later maintenance cost, low comprehensive cost.
• Metal (Steel/Aluminum Alloy): Steel service life 5-8 years (easy to rust), aluminum alloy service life 8-10 years (easy to oxidize); high initial cost, high maintenance cost (anti-rust, anti-corrosion treatment), high comprehensive cost.
• PVC Sheet: Service life 2-3 years, low initial cost, but frequent replacement, high long-term comprehensive cost.
• Acrylic (PMMA): Service life 1-2 years, low initial cost, but easy to damage and replace, very high long-term comprehensive cost.

Conclusion: PC sheet has the longest service life and the lowest comprehensive cost; other materials have short service life and high long-term cost.

4.7 Summary of Material Comparison

From the above multi-dimensional comparison, it can be seen that PC sheet is the only material that can balance safety, durability, light weight, design flexibility, and low comprehensive cost. Although the initial material cost of PC sheet is slightly higher than that of PVC and acrylic, its ultra-long service life, low maintenance cost, and excellent performance make it the most cost-effective choice for EV charging stations in the long run.

Metal materials have high strength but are heavy, easy to rust, and poor in design flexibility; PVC and acrylic have low initial cost but poor performance, short service life, and high long-term cost. Therefore, PC sheet has become the mainstream material for high-quality EV charging stations, and is widely recognized and applied by more and more charging station manufacturers.

How to Choose the Right PC Sheet for Charging Stations

Choosing the right PC sheet is the key to ensuring the performance and service life of EV charging stations. According to the different application parts and usage scenarios of charging stations, the requirements for PC sheet specifications (thickness, type, flame retardant grade, UV resistance, color) are also different. The following is a detailed selection guide for your reference.

5.1 Selection by Application Parts

• Charging Station Outer Shell: Priority to choose flame retardant solid PC sheet (UL94-V0 grade), thickness 2mm-5mm (AC charging station 2mm-3mm, DC charging station 3mm-5mm). The material needs to have high impact resistance and weather resistance, and black or dark gray is recommended (anti-dirty, UV-resistant).
• Display Panel Cover: Choose transparent or frosted solid PC sheet, thickness 1mm-3mm, light transmittance ≥85%, with surface hardening treatment (wear-resistant) and UV-resistant layer (anti-yellowing). Transparent is recommended for clear display, and frosted is recommended for anti-glare.
• Charging Gun Shell: Choose modified flame retardant PC sheet (or PC/ABS alloy), thickness 1.5mm-3mm, with high impact resistance (anti-drop) and good toughness (anti-bend). Black is recommended for wear resistance and anti-dirty.
• Internal Insulation Parts: Choose transparent or black flame retardant PC sheet (UL94-V0 grade), thickness 0.5mm-2mm, with excellent electrical insulation and high temperature resistance. Transparent is convenient for internal observation, and black is anti-interference.
• Charging Station Rain Shed: Choose hollow PC sheet (6mm-12mm) or solid PC sheet (4mm-8mm). Hollow PC sheet is recommended for large-area rain sheds (lightweight, heat insulation), and solid PC sheet is recommended for small-area canopies (high strength). Transparent or light gray is recommended for high light transmission.

5.2 Selection by Core Performance Requirements

• Flame Retardant Requirement: For parts involving electrical safety (shell, internal parts, charging gun), UL94-V0 grade flame retardant PC sheet must be selected; for non-electrical parts (rain shed, signs), UL94-V2 grade is optional.
• Weather Resistance Requirement: For all outdoor exposed parts (shell, display panel, rain shed, signs), PC sheet with UV-resistant co-extrusion layer must be selected to ensure long-term outdoor use without aging.
• Impact Resistance Requirement: For parts vulnerable to collision (shell, charging gun, rain shed), high impact resistance PC sheet must be selected (impact strength ≥60kJ/m²); for internal parts, conventional impact resistance is sufficient.
• Temperature Resistance Requirement: For parts in high-temperature environments (internal parts, shell near the power module), high-temperature resistant PC sheet (heat distortion temperature ≥130°C) must be selected; for conventional parts, 120°C is sufficient.

5.3 Selection by Brand & Quality

• Brand Preference: Choose well-known brands (such as Covestro, SABIC, LEXAN) or professional domestic PC sheet manufacturers, with stable quality and reliable performance, and complete certifications (UL, ROHS, REACH).
• Quality Inspection: Check whether the PC sheet surface is smooth, without scratches, bubbles, or impurities; check whether the color is uniform, without yellowing or discoloration; check whether the edge is neat, without burrs or cracks.
• Certification Requirements: Must have UL94 flame retardant certification, ROHS environmental protection certification, UV resistance test report, etc., to ensure compliance with industry standards.

5.4 Common Mistakes to Avoid

• Blindly Pursuing Low Price: Low-cost PC sheets often have no UV-resistant layer, poor flame retardancy, and unstable performance, which are easy to age and damage, leading to high long-term costs.
• Ignoring Flame Retardant Grade: Using UL94-V2 grade PC sheet for electrical safety parts will bring fire safety hazards.
• Unmatched Thickness: Too thin will lead to insufficient strength and easy deformation; too thick will increase weight and cost, wasting materials.
• No UV Protection: Choosing PC sheets without UV-resistant layer for outdoor parts will lead to rapid yellowing, embrittlement, and cracking.

Our Professional PC Sheet Processing & Custom Services

As a professional PC sheet manufacturer and processing service provider, we have been focusing on the R&D, production, and deep processing of PC sheets for many years. We have rich experience in serving new energy vehicle charging station manufacturers, and can provide one-stop customized services from raw material supply, precision processing, surface treatment, to finished product delivery according to the specific needs of customers.

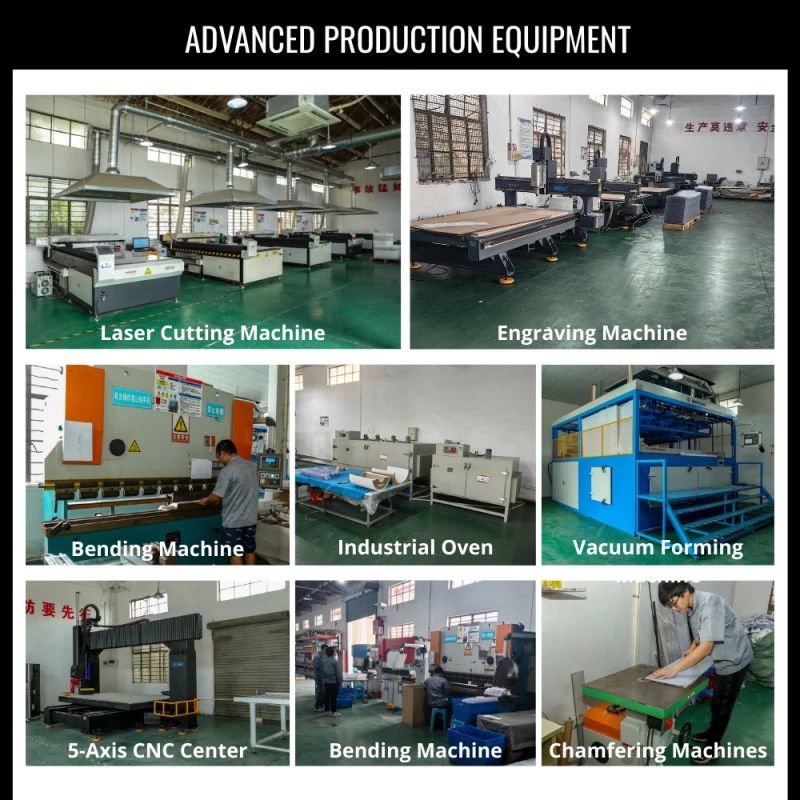

Our factory is equipped with advanced production and processing equipment, including PC sheet extrusion production lines, CNC cutting machines, laser cutting machines, bending machines, punching machines, drilling machines, thermoforming machines, silk printing machines, and UV coating machines. We can process various specifications of PC sheets and customized parts for EV charging stations, with precise processing size (tolerance ±0.1mm), smooth surface, and reliable quality.

6.1 Core Services We Provide

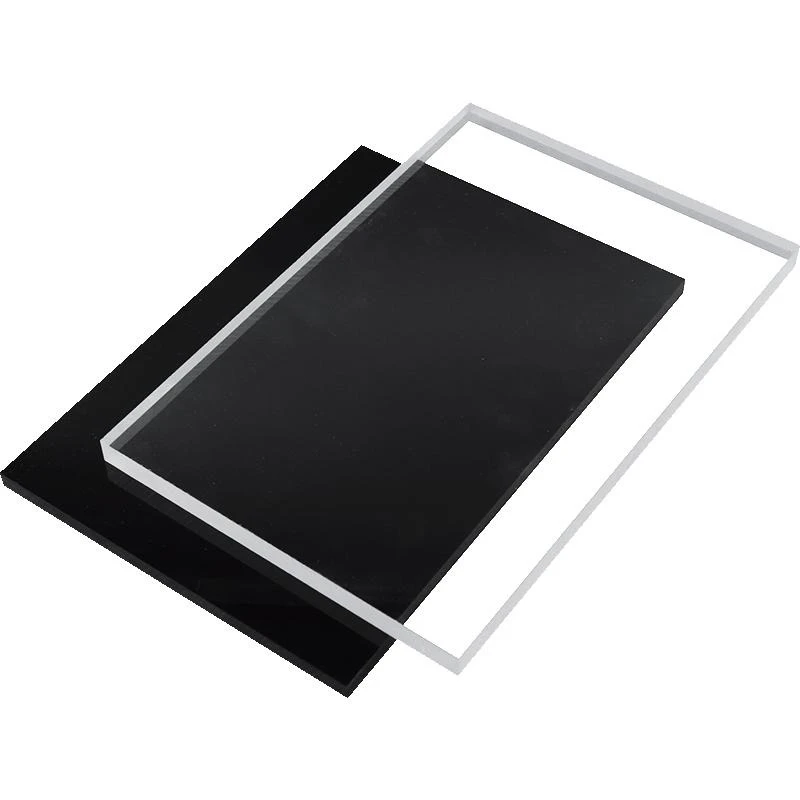

6.1.1 Raw Material Supply (High-Quality PC Sheet)

We supply full range of PC sheet products for EV charging stations, including:

• Flame retardant PC sheet: UL94-V0 grade, thickness 0.5mm-12mm, black, white, gray, and other customized colors, with UV-resistant layer.
• Transparent PC sheet: Light transmittance 85%-90%, thickness 1mm-8mm, with surface hardening and UV-resistant treatment, used for display panels and observation windows.
• Hollow PC sheet: Thickness 6mm-12mm, transparent/light gray, lightweight and heat-insulating, used for charging station rain sheds.
• Modified PC sheet: PC/ABS alloy, high toughness, anti-drop, used for charging gun shells and high-impact parts.

All raw materials are from well-known domestic and foreign brands, with complete certifications (UL, ROHS, REACH), stable quality, and compliance with new energy industry standards.

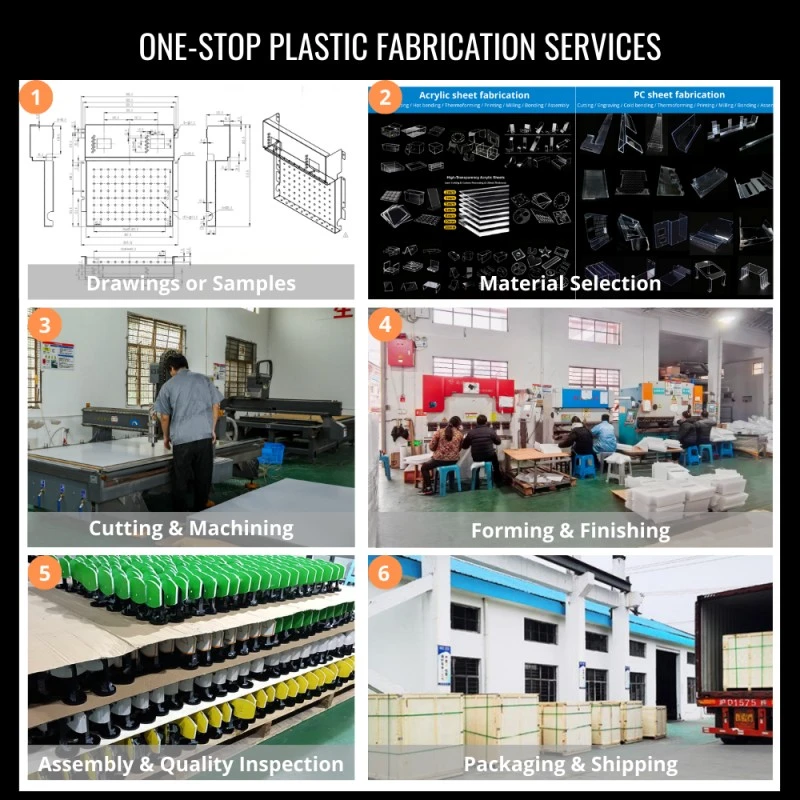

6.1.2 Precision Processing Services

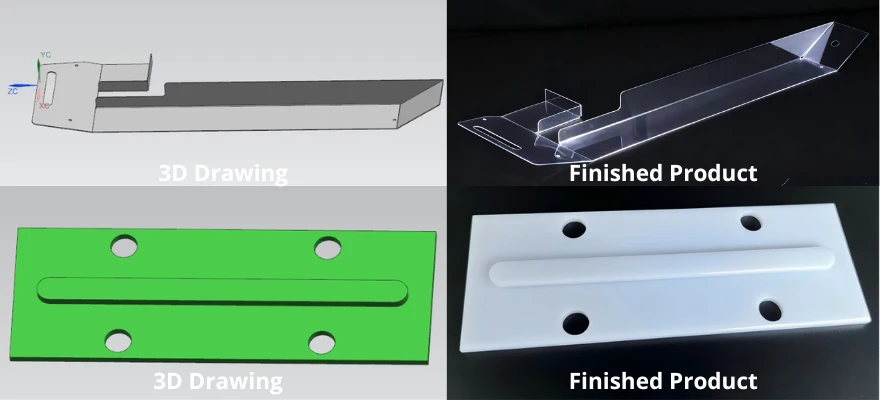

According to customer drawings and samples, we provide precision processing services for PC sheets, including:

• Cutting: CNC cutting, laser cutting, precise size, smooth edge, no burrs.
• Bending: Cold bending, heat bending, various angles (0°-180°), no cracking, no deformation.
• Punching & Drilling: Precision punching, drilling, different hole diameters (0.5mm-50mm), neat hole edge, no cracking.
• Thermoforming: Vacuum forming, pressure forming, various curved surfaces and special-shaped parts, high forming precision.
• CNC Milling: Precision milling of grooves, slots, and special-shaped structures, tolerance ±0.1mm.

6.1.3 Surface Treatment Services

We provide professional surface treatment for PC sheet parts to improve performance and aesthetics:

• UV Coating: Enhance UV resistance, anti-aging, extend service life.
• Hardening Treatment: Improve wear resistance, scratch resistance, suitable for display panels and touch parts.
• Silk Printing & Digital Printing: Print LOGO, patterns, operation instructions, warning signs, clear and durable, no fading.
• Frosting & Sandblasting: Anti-glare, improve texture, suitable for display panels and decorative parts.
• Color Customization: Add color masterbatches to customize any color (black, white, gray, red, blue, etc.) according to customer requirements.

6.1.4 Customized Mold Development & Mass Production

For customers who need mass production of customized PC sheet parts (such as charging station shells, charging gun shells), we provide mold development services. Our professional mold team can design and develop high-precision molds according to customer needs, with short development cycle and low mold cost. After mold completion, we can carry out automated mass production, with stable product quality, fast delivery, and low unit cost, meeting the mass production needs of charging station manufacturers.

6.1.5 One-Stop Solution & Technical Support

We not only provide PC sheet products and processing services, but also provide one-stop solution technical support for customers. Our professional technical team has many years of experience in the new energy charging station industry, and can provide customers with:

• Material Selection Guidance: According to customer’s product design and usage scenarios, recommend the most suitable PC sheet type, thickness, and performance parameters.
• Processing Design Optimization: Optimize the processing technology and structure design of PC sheet parts to reduce cost, improve production efficiency, and ensure product quality.
• Quality Inspection & Testing: Provide professional quality inspection and testing services (impact resistance, flame retardancy, weather resistance, etc.), and issue test reports.
• After-Sales Service: 24-hour customer service response, solve customer problems in a timely manner, and provide after-sales guarantee for products.

6.2 Our Advantages in Serving Charging Station Customers

6.2.1 Professional Industry Experience

We have served more than 100 new energy charging station manufacturers at home and abroad, and have in-depth understanding of the material needs, processing standards, and quality requirements of charging stations. We can accurately understand customer needs and provide targeted solutions.

6.2.2 Stable Quality & Reliable Certification

All our PC sheet products and processed parts are produced in strict accordance with ISO9001 quality management system standards, with complete quality inspection procedures. The products have passed UL, ROHS, REACH, and other international certifications, and the quality is recognized by many well-known charging station brands.

6.2.3 Fast Delivery & Flexible MOQ

We have large inventory of conventional PC sheet products, which can be delivered within 3-7 days; for customized processing orders, the delivery cycle is 7-15 days according to the complexity of the process. We support flexible MOQ, from small batch trial production (10-100 pieces) to mass production (10,000+ pieces), to meet the different order needs of customers.

6.2.4 Competitive Price & Cost-Effective

We have our own production and processing factories, with independent raw material procurement channels and automated production lines, which can reduce intermediate links and control costs. We provide customers with competitive factory-direct prices without middlemen markup. For long-term cooperative customers, we also offer preferential policies such as quantity discounts and customized price packages, helping customers reduce procurement costs while ensuring product quality.

6.2.5 Global Export Experience & Perfect Logistics

We have rich experience in global export of PC sheet products and processed parts, and have served customers in more than 50 countries and regions (Europe, North America, Southeast Asia, Australia, etc.). We are familiar with international trade processes, customs clearance requirements, and transportation standards, and can provide customers with one-stop export services including document preparation, customs declaration, and logistics arrangement. We cooperate with well-known international logistics companies (DHL, FedEx, UPS, sea freight, air freight) to ensure that products are delivered to customers safely and on time, with reliable packaging (moisture-proof, shock-proof, compression-proof) to avoid damage during transportation.

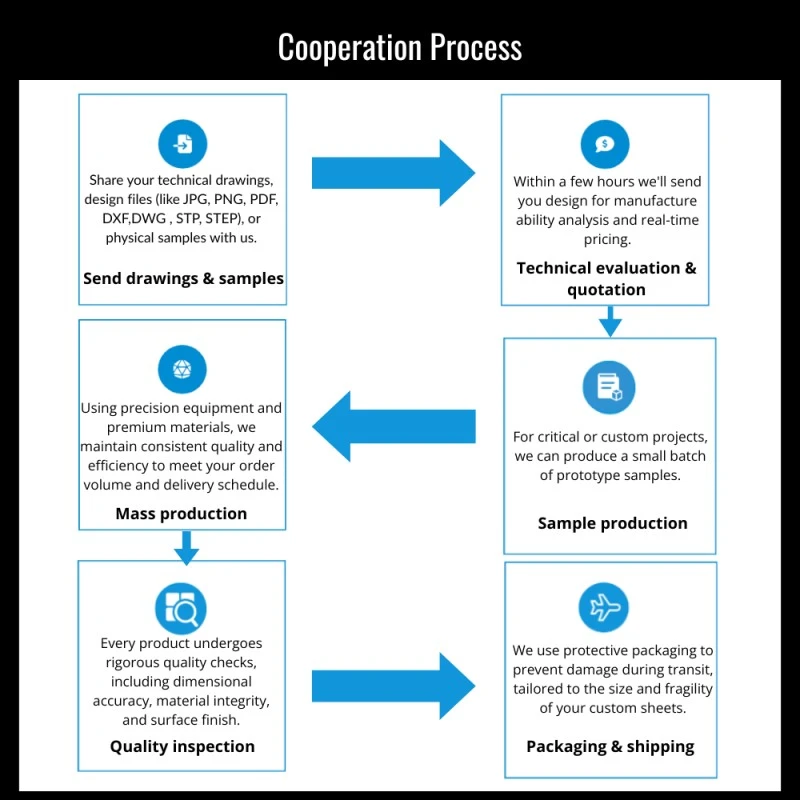

6.3 Cooperation Process

Cooperating with us is simple and efficient, and the whole process is transparent:

1. Demand Communication: You provide product requirements (application parts, specifications, thickness, flame retardant grade, processing type, quantity, drawings/samples).
2. Program Design & Quotation: Our technical team designs a customized solution (material selection, processing technology, surface treatment) and provides a detailed quotation within 24 hours.
3. Sample Confirmation: We produce samples according to the solution (sample delivery time 3-5 days), and you confirm the sample quality (performance, size, appearance) before mass production.
4. Mass Production: After sample confirmation, we arrange mass production, and update the production progress to you regularly.
5. Quality Inspection & Packaging: All finished products pass strict quality inspection, and are packaged with export-standard packaging.
6. Delivery & After-Sales: We arrange logistics delivery according to the agreed method, and provide after-sales technical support and problem-solving services.

6.4 Customer Cases (Partial Display)

Over the years, we have cooperated with many well-known charging station manufacturers at home and abroad, and our products and services have been highly recognized. Here are some typical cases:

• Case 1: Cooperated with a European charging station manufacturer to provide flame retardant PC sheet shells (UL94-V0 grade, black, thickness 3mm) and precision processing services. The annual supply volume exceeds 50,000 pieces, and the products have passed CE certification, with stable quality and zero after-sales complaints.
• Case 2: Cooperated with a domestic new energy vehicle brand to develop customized PC sheet display panels (transparent, surface hardening + UV resistance, thickness 2mm) and charging gun shells (PC/ABS alloy, flame retardant V0 grade). The products are used in the brand’s self-operated charging stations, with a service life of more than 8 years.
• Case 3: Provided hollow PC sheet (10mm, transparent) and installation accessories for a large outdoor charging station project in Southeast Asia, with a total area of 2,000 square meters. The rain shed has excellent impact resistance and heat insulation, and has withstood typhoon and heavy rain tests.

If you are looking for a reliable polycarbonate sheet supplier and processing service provider for EV charging stations, we are your best choice. Whether you need small-batch samples, customized processing, or mass production, we can provide professional and efficient services to help your project succeed.

Future Trends of PC Sheet in EV Charging Industry

With the continuous development of the new energy vehicle industry and the continuous upgrading of charging station technology, the application of PC sheets in charging stations will also show new development trends. The following is a detailed analysis of the future development direction of PC sheets in the charging station industry, combined with industry technology trends and market demand changes.

7.1 Higher Performance Requirements (Flame Retardancy, Temperature Resistance, Impact Resistance)

With the increase of charging station power (from 7kW AC charging to 480kW ultra-fast DC charging), the heat generation of internal components is increasing, and the requirements for material flame retardancy and temperature resistance are becoming more and more strict. In the future, high flame retardant PC sheets (UL94-V0 grade, low smoke, zero halogen) and high temperature resistant PC sheets (heat distortion temperature ≥150°C) will become the mainstream of charging station materials. These materials can better adapt to high-power charging stations’ high temperature and high safety requirements, and reduce fire risks.

At the same time, with the popularization of charging stations in public places (shopping malls, parks, roadsides), the risk of accidental collision and vandalism is increasing. The demand for ultra-high impact resistance PC sheets will also increase. In the future, modified PC sheets with higher impact strength (impact strength ≥80kJ/m²) will be more widely used in charging station shells, charging guns, and other vulnerable parts.

7.2 Lightweight & Integration Design

Lightweight and integration are important development trends of charging station design. Lightweight can reduce transportation and installation costs, and integration can simplify the structure, improve production efficiency, and reduce failure rates. PC sheets have the characteristics of lightweight and good processability, which can meet the needs of lightweight and integration design.

In the future, charging station manufacturers will tend to use integrated PC sheet components (such as integrated shell + internal structural parts, integrated display panel + operation buttons) to replace traditional multi-part assembly. This not only reduces the number of parts and assembly processes, but also improves the structural stability and waterproof dustproof performance of charging stations. At the same time, the development of ultra-thin high-strength PC sheets (thickness ≤2mm, but impact strength ≥50kJ/m²) will further promote the lightweight of charging stations.

7.3 Intelligence & Functional Integration

With the development of the Internet of Things (IoT) and artificial intelligence (AI), charging stations are developing towards intelligence (remote monitoring, intelligent payment, fault self-diagnosis). This requires PC sheet parts to have functional integration capabilities, such as integrating sensors, antennas, and touch functions.

In the future, functional PC sheets (such as PC sheets with built-in sensor channels, PC sheets with antenna integration, touch-sensitive PC sheets) will be more widely used in charging stations. For example, the display panel cover can be integrated with a touch sensor to realize touch operation; the shell can be integrated with a temperature sensor to monitor the internal temperature of the charging station in real time; the charging gun shell can be integrated with a proximity sensor to prevent accidental electric shock. These functional integrated PC sheets will improve the intelligence level and user experience of charging stations.

7.4 Environmental Protection & Sustainable Development

Global environmental protection policies are becoming more and more strict, and the new energy industry is paying more and more attention to environmental protection and sustainable development. PC sheets, as environmentally friendly and recyclable materials, will be more favored by charging station manufacturers.

In the future, recycled PC sheets (made from recycled waste PC materials) will gradually enter the charging station market. These recycled PC sheets have the same performance as virgin PC sheets, but the raw material cost is lower, and they a  re more environmentally friendly, conforming to the circular economy concept. At the same time, the development of biodegradable PC sheets (degradable under natural conditions after use) will further reduce environmental pollution and promote the sustainable development of the charging station industry.

7.5 Customization & Personalization

With the increase of market competition, charging station manufacturers are paying more and more attention to product differentiation and brand image building. Customization and personalization have become important means to enhance market competitiveness. PC sheets have strong design flexibility, which can meet the customization and personalization needs of charging stations.

In the future, charging station manufacturers will tend to customize special-shaped PC sheet components (such as unique curved shells, personalized color shells) and branded PC sheet parts (such as silk-screened brand LOGO, unique pattern printing) to improve product differentiation and brand recognition. At the same time, the demand for small-batch customized PC sheet parts will increase, which requires PC sheet suppliers to have flexible production capacity and fast response speed.

FAQ

In the process of selecting and using PC sheets for EV charging stations, customers often have some questions. The following are the most common questions and detailed answers to help you solve doubts.

8.1 Q: Can PC sheets be used in high-power DC charging stations?

A: Yes. High-power DC charging stations have high requirements for flame retardancy, temperature resistance, and impact resistance. We provide flame retardant PC sheets (UL94-V0 grade) and high temperature resistant PC sheets (heat distortion temperature ≥130℃) for high-power DC charging stations. These PC sheets can withstand the high temperature generated by internal components and have excellent impact resistance and electrical insulation, which is completely suitable for high-power DC charging stations.

8.2 Q: How long is the service life of PC sheets in outdoor charging stations?

A: Our PC sheets are added with double-sided UV-resistant co-extrusion layer, and the outdoor service life can reach 10-15 years. During the service life, the PC sheet will not yellow, embrittle, or crack, and the performance remains stable. If the charging station is used in harsh environments (such as coastal salt spray areas, high-temperature areas), we can provide modified PC sheets with enhanced corrosion resistance and temperature resistance, and the service life can be extended appropriately.

8.3 Q: Can PC sheet parts be customized according to our own drawings?

A: Yes. We support full customization according to customer drawings and samples. Our technical team can analyze the feasibility of processing according to your drawings, optimize the design if necessary, and provide customized processing services (cutting, bending, punching, thermoforming, silk printing, etc.). The processing size tolerance is ±0.1mm, which can meet the precision requirements of charging station parts.

8.4 Q: Do you provide free samples?

A: Yes. For customers who need to test the quality of PC sheets, we provide free sample service (you only need to bear the express fee). You can provide the required PC sheet specifications (thickness, type, flame retardant grade, color), and we will send samples within 3-5 working days. After you confirm the sample quality, we can carry out mass production.

8.5 Q: What certifications do your PC sheets have?

A: Our PC sheet products have passed a number of international and domestic certifications, including UL94 flame retardant certification, ROHS environmental protection certification, REACH certification, CE certification, and ISO9001 quality management system certification. All products comply with the safety and environmental protection standards of the new energy industry, and can be used with confidence in global charging station projects.

8.6 Q: How to maintain PC sheet parts of charging stations?

A: PC sheet parts have good durability and require little maintenance. The daily maintenance methods are as follows: 1. Clean the surface with a soft cloth and neutral detergent (avoid using corrosive cleaners such as acid and alkali); 2. Avoid sharp objects scratching the surface; 3. Regularly check whether the PC sheet has cracks, deformation, or yellowing. If any damage is found, replace it in time; 4. For outdoor PC sheet parts, avoid long-term contact with oil stains and chemical substances.

8.7 Q: What is the delivery time for customized PC sheet parts?

A: The delivery time depends on the processing complexity and quantity: 1. Small-batch samples (1-100 pieces): 3-5 working days; 2. Medium-batch orders (100-1000 pieces): 7-10 working days; 3. Large-batch orders (1000+ pieces): 10-15 working days. If you have urgent needs, we can arrange priority production and shorten the delivery time appropriately.



Conclusion

In the rapid development of the new energy vehicle industry, EV charging stations, as core supporting facilities, are facing higher requirements for safety, durability, lightweight, and intelligence. Polycarbonate sheet, with its excellent comprehensive performance (ultra-high impact resistance, excellent weather resistance, good flame retardancy, lightweight, easy processing), has become the preferred material for high-quality EV charging stations, and is widely used in shells, display panels, charging guns, internal insulation parts, and rain sheds.

Through the detailed introduction in this article, we believe you have a comprehensive understanding of the application of polycarbonate sheets in EV charging stations, including basic properties, core advantages, application scenarios, material comparison, selection guidelines, and our customized processing services. Choosing the right polycarbonate sheet and reliable supplier is the key to ensuring the performance and service life of charging stations, and reducing comprehensive costs.

We are a professional polycarbonate sheet manufacturer and processing service provider with rich experience in the new energy charging station industry. We are committed to providing high-quality polycarbonate sheet products and one-stop customized services for global customers. Whether you have needs for material selection, customized processing, mass production, or export, we can provide professional and efficient solutions to help your project succeed.

If you have any questions or needs, please feel free to contact us. We will reply to you within 24 hours and provide you with the most sincere service and support. Let us work together to promote the development of the new energy industry and create a greener and more sustainable future.
